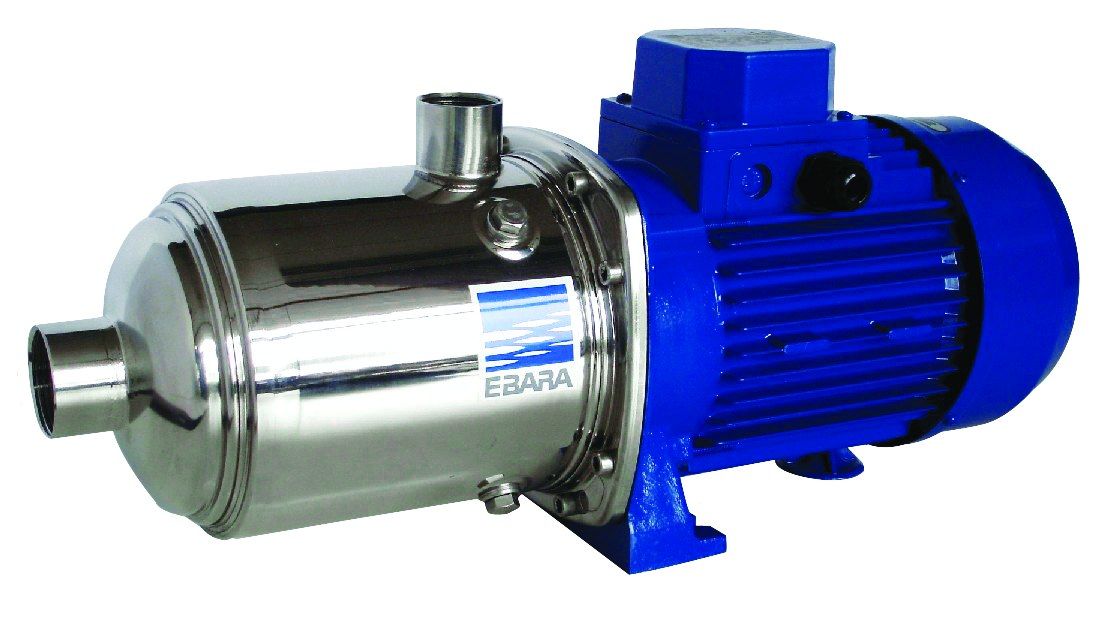

EBARA MATRİX Serisi Çok Kademeli Komple 316 Paslanmaz Santrifüj Pompa
|
Pompa Özellikleri |
||
| Basılan Sıvı | Tipi | Su, agresif çözeltiler, glikol solüsyonu, hafif viskoz sıvılar, kimyasal çözeltiler |
| Sıcaklık (oC) | -15 oC + 110 oC | |
| Maksimum Katı Madde Oranı |
500 ppm | |
| Maksimum Çalışma Basıncı |
(mPa) | 1 |
| (bar) | 10 | |
| Tip | Fan | Kapalı Santrifüj Tip |
| Rulman | Kapalı, Kendinden yağlamalı rulman | |
| Sızdırmazlık | Mekanik Salmastra (Seramik / Karbon / EPDM) | |
|
Motor Özellikleri |
|||
| Tip | Elektrik - TEFC | ||
| Monofaze | Trifaze | ||
| Kutup Sayısı | 2 | ||
| Devir | 2850 | ||
| İzolasyon Sınıfı | F Sınıfı | ||
| Koruma | IP 55 | ||
| Güç | (kw) | 0,45 - 2,2 | 0,45 - 4,0 |
| (HP) | 0,6 - 3,0 | 0,6 - 5,5 | |
| Frekans | (Hz) | 50 | |
| Voltaj | (V) | 230 | 230 / 400 |
| Kapasitör | Üzerinde | - | |
| Aşırı Yük Koruması | Üzerinde | Kullanıcı temin edecektir | |
| Motor Örtüsü | Aluminyum | ||
| Kablo Giriş Ölçüsü | PG 11 - M 20x1,5 | PG 11 / PG 13,5 | |
| Model | Güç | Elektrik (V) | Giriş - Çıkış (inc) | Ağırlık (kg) | |
| kw | HP | ||||
| Matrix 3-3T/0,65 M | 0,65 | 0,90 | 220 | 1" - 1" | 9,9 |
| Matrix 3-3T/0,65 | 0,65 | 0,90 | 380 | 1" - 1" | 9,8 |
| Matrix 3-4T/0,65 M | 0,65 | 0,90 | 220 | 1" - 1" | 10,6 |
| Matrix 3-4T/0,65 | 0,65 | 0,90 | 380 | 1" - 1" | 10,4 |
| Matrix 3-5T/0,75 | 0,75 | 1,00 | 380 | 1" - 1" | 12,4 |
| Matrix 3-6T/0,9 | 0,90 | 1,20 | 380 | 1" - 1" | 13,7 |
| Matrix 3-6T/0,9 M | 0,90 | 1,20 | 220 | 1" - 1" | 13,7 |
| Matrix 3-7T/1,3 M | 1,3 | 1,8 | 220 | 1" - 1" | 16,3 |
| Matrix 3-7T/1,3 | 1,3 | 1,8 | 380 | 1" - 1" | 16,1 |
| Matrix 3-8T/1,3 M | 1,3 | 1,8 | 220 | 1" - 1" | 16,3 |
| Matrix 3-8T/1,3 | 1,3 | 1,8 | 380 | 1" - 1" | 16,8 |
| Matrix 3-9T/1,5 M | 1,5 | 2,0 | 380 | 1" - 1" | 18,3 |
| Matrix 3-9T/1,5 | 1,5 | 2,0 | 380 | 1" - 1" | 17,7 |
| Matrix 5-4T/0,9 | 0,9 | 1,2 | 380 | 11/4" - 1" | 12,1 |
| Matrix 5-5T/1,3 | 1,3 | 1,8 | 380 | 11/4" - 1" | 14,5 |
| Matrix 5-6T/1,3 | 1,3 | 1,8 | 380 | 11/4" - 1" | 15,6 |
| Matrix 5-7T/1,5 M | 1,5 | 2,0 | 220 | 11/4" - 1" | 17,2 |
| Matrix 5-7T/1,5 | 1,5 | 2,0 | 380 | 11/4" - 1" | 16,6 |
| Matrix 5-8T/2,2 M | 2,2 | 3,0 | 220 | 11/4" - 1" | 22,3 |
| Matrix 5-8T/2,2 | 2,2 | 3,0 | 380 | 11/4" - 1" | 22,8 |
| Matrix 5-9T/2,2 M | 2,2 | 3,0 | 220 | 11/4" - 1" | 18,8 |
| Matrix 5-9T/2,2 | 2,2 | 3,0 | 380 | 11/4" - 1" | 18,2 |
| Matrix 10-5T/2,2 | 2,2 | 3,0 | 380 | 11/2" - 11/4" | 17,9 |
| Matrix 10-6T/2,2 | 2,2 | 3,0 | 380 | 11/2" - 11/4" | 18,3 |
| Matrix 18-4T/3,0 | 3,0 | 4,0 | 380 | 2" - 11/2" | 21,7 |
| Matrix 18-5T/4,0 | 4,0 | 5,5 | 380 | 2" - 11/2" | 26,9 |
| Matrix 18-6T/4,0 | 4,0 | 5,5 | 380 | 2" - 11/2" | 28,1 |
| Model | l/dk | 0 | 20 | 30 | 45 | 60 | 80 |
| m3/s | 0 | 1,2 | 1,8 | 2,7 | 3,6 | 4,8 | |
| Matrix 3-3T/0,65 | mSS | 33,9 | 31,4 | 29,3 | 25,5 | 20,4 | 12,0 |
| Matrix 3-4T/0,65 | 45,0 | 42,0 | 39,1 | 34,0 | 27,2 | 16,0 | |
| Matrix 3-5T/0,75 | 56,5 | 52,5 | 49,0 | 42,5 | 34,0 | 20,0 | |
| Matrix 3-6T/0,9 | 68,0 | 62,5 | 58,5 | 51,0 | 41,0 | 24,0 | |
| Matrix 3-7T/1,3 | 79,0 | 73,0 | 68,5 | 59,5 | 47,5 | 28,0 | |
| Matrix 3-8T/1,3 | 90,5 | 83,5 | 78,0 | 68,0 | 54,5 | 32,0 | |
| Matrix 3-9T/1,5 | 102 | 94,0 | 88,0 | 76,5 | 61,0 | 36,0 |
| Model | l/dk | 0 | 30 | 45 | 60 | 80 | 100 | 130 |
| m3/s | 0 | 1,8 | 2,7 | 3,6 | 4,8 | 6,0 | 7,8 | |
| Matrix 5-4T/0,9 | mSS | 46,0 | 43,0 | 41,0 | 38,6 | 34,7 | 29,4 | 17,6 |
| Matrix 5-5T/1,3 | 57,5 | 54,0 | 51,0 | 48,5 | 43,5 | 36,7 | 22,0 | |
| Matrix 5-6T/1,3 | 69,0 | 64,5 | 61,5 | 58,0 | 52,0 | 44,0 | 26,4 | |
| Matrix 5-7T/1,5 | 80,5 | 75,5 | 72,0 | 67,5 | 61,0 | 51,5 | 30,8 | |
| Matrix 5-8T/2,2 | 92,0 | 86,0 | 82,0 | 77,0 | 69,5 | 58,5 | 35,2 | |
| Matrix 5-9T/2,2 | 104 | 97,0 | 92,0 | 87,0 | 78,0 | 66,0 | 39,6 |
| Model | l/dk | 0 | 60 | 80 | 100 | 130 | 160 | 200 | 250 |
| m3/s | 0 | 3,6 | 4,8 | 6,0 | 7,8 | 9,6 | 12 | 15 | |
| Matrix 10-5T/2,2 | mSS | 60,0 | 55,5 | 53,5 | 51,5 | 47,5 | 42,5 | 32,1 | 14,5 |
| Matrix 10-6T/2,2 | 72,0 | 66,5 | 64,5 | 62,0 | 57,0 | 51,0 | 38,5 | 17,4 |
| Model | l/dk | 0 | 130 | 160 | 200 | 250 | 300 | 350 | 400 | 450 |
| m3/s | 0 | 7,8 | 9,6 | 12 | 15 | 18 | 21 | 24 | 27 | |
| Matrix 18-4T/3,0 | mSS | 48,5 | 44,0 | 42,5 | 40,5 | 37,4 | 33,6 | 28,4 | 20,6 | 10,4 |
| Matrix 18-5T/4,0 | 60,5 | 55,0 | 53,0 | 50,5 | 47,0 | 42,0 | 35,5 | 25,8 | 13,0 | |
| Matrix 18-6T/4,0 | 72,5 | 66,0 | 64,0 | 60,5 | 56,0 | 50,5 | 42,5 | 30,9 | 15,6 |
